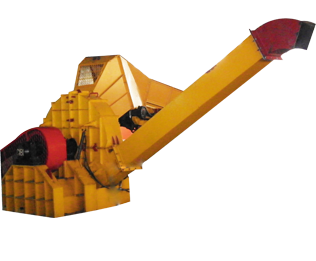

These machines are commonly used for the conversion of wood logs of any nature into wood chips of 7 mm to 30 mm size depends upon the customer's choice. This machine is available in various capacities starting from 30 HP to 300 HP. The production capacities are also varies from 3 Metric tons to 25 Metric tons per hour depends on customers choice.
Wood chips are used in all biomass based power project as fuel to generate heat which is converted to electricity, Co-generation Power Projects, Sugar Industries, Distilleries, Edible Oil Refi
| SPECIFICATION | 30 HP | 100 HP | 150 HP |
| Type | Disc | Disc | Disc |
| No of Knife | 4 | 4 | 4 |
| No of Dead Knife | 1 | 1 | 1 |
| Blade Tip Height from Disc Face | 7 - 14 mm | 7 - 14 mm | 7 - 14 mm |
| No of Bearing supports | 2 | 3 | 3 |
| Feed | Manual by Gravity | Manual by Gravity | Manual by Gravity |
| Hand of Feed | Right or Left (On Request) | Right or Left (On Request) | Right or Left (On Request) |
| Feed Material size | Maximum 3" Dia (Straight Log) | 1.5 to 6" Dia (Straight Log) | 2" to 10" Dia (Straight Log) |
| Drive | "V" Belt | "V" Belt | "V" Belt |
| Motor HP / RPM | 30 / 1440 | 100 / 1440 | 150 / 1440 |
| Capacity | 2 - 3 MTS/Hr (Firewood with 30 to 40% moisture) | 7 - 10 MTS/Hr (Firewood with 30 to 40% moisture) | 10 -15 MTS/Hr (Firewood with 30 to 40% moisture) |
| Chip Size | 7 mm to 24 mm | 7 mm to 24 mm | 7 mm to 24 mm |
| Unsize Chips | 3 to 5% /Mt | 3 to 5% /Mt | 3 to 5% /Mt |
