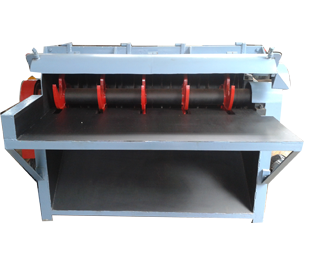

These machines are commonly used for shredding leaves of sugar cane and coconut, stalks of cotton, maize and chilly, veneer waste, municipal waste and all types of thin stems to a size desired by the customer. After processing these raw materials will be used as fuel in boilers. The major industries using these machines are bio-mass based power projects, co-generation power plants, sugar industries, plywood industries etc. These machines are available in various capacities required by the customers.
| SPECIFICATION | DMS 800 - 50 | DMS 1000 - 75 |
| Type of Shredder | Drum | Drum |
| No of Rotating Knives | 4 | 4 |
| Knife MOC | Bohler Steel (K 300) | Bohler Steel (K 300) |
| Mode of Drum Drive | V - Belt | V - Belt |
| Drive Motor HP / RPM | 50 / 1440 (Induction) | 75 / 1440 (Induction) |
| Output Capacity | 2 -3 Mts/ Hr | 3 - 5 Mts / Hr (Depends upon density of material) |
| Output Product Size | 7 to 40 mm | 7 to 40 mm |
| Infeed Materials | Sugar Cane Trash, Veneer Waste, Hay etc. (with a moisture content of 30 to 40%) | Cotton Stalks, Chilly Stalks, Sugar Cane Trash, Small Wood logs upto 20 mm dia, Veneer Waste, Coconut Front & leaves, Wood barks etc, (with a moisutre content of 30 to 40%) |
| Mode of Feeding | By Belt Conveyor & Feed Roller | By Belt Conveyor & Feed Roller |
| No of Dead Knives | 2 | 2 |
| Infeed Conveyor Size | 5000 mm x 800 mm | 5000 mm x 800 mm |
| Infeed Conveyor Drive | Coupled from bottom grip roller drive | Coupled from bottom grip roller drive |
| Feed Roller Details | 3 HP Geared Top Feeder 5 HP Geared Bottom Feeder | 3 HP Geared Top Feeder 5 HP Geared Bottom Feeder |
| Output Conveyor Type | Rubber Belt 2 ply 6 mm thick with side guard and necessary supports | |
| Output Conveyor Size | 5000 mm x 700 mm | |
| Output Conveyor Drive | 3 HP Geared Motor | |
| Hydraulic Power Pack | One with 2 HP Drive Motor (Suitable attachments for Press feeder opening, Hood Opening etc.) |
